Applications

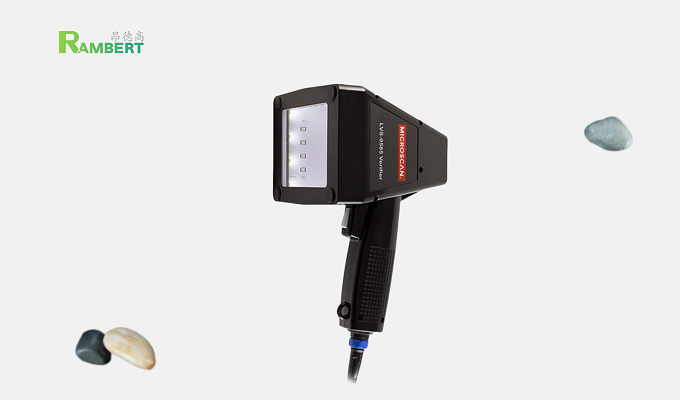

The LVS - 9585 is a high-performance portable offline barcode verification system based on ISO/IEC, ANSI, and GS1 standards. Equipped with a 5-megapixel high-resolution camera, it can read and analyze barcodes (1D codes) and 2D codes with a maximum width of 76.19mm and height of 57.15mm. It can verify 44mm×44mm 1D and 2D Direct Part Marking (DPM) in accordance with MIL-STD-130, ISO, and GS1 standards.

The LVS - 9585 can verify various symbols such as 2D codes (Data Matrix, QR code, Aztec code), and stacked barcodes (PDF417, MicroPDF, Composite code). Powered by a 2.0m USB 2.0 cable, it can verify 2D codes on various materials such as plastic, PCB, metal, corrugated board, and factory containers.

Features

• Verify printed barcodes (1D codes), 2D codes, and direct part marking with a single device.

• The software switches the color (red, white) and angle (up to 30°) of the built-in dome lighting to automatically select the optimal lighting.

• Perform simple human-readable verification for barcodes compliant with ISO/IEC, ANSI, GS1, and UDI printing quality standards.

• Perform simple human-readable verification for DPM compliant with ISO, MIL-STD-130, and GS1 standards.

• Verify multiple 2D codes simultaneously, and upgrade the software to enable multi-sector functions for detecting GS1 AI content, etc.

• Compliant with 21 CFR Part 11 standards.

• Support 15 languages, with the option to add more.

• Export verification reports to Excel or SQL databases.

• Comes with a traceable NIST standard test card for verifying system consistency.

• Adjustable mounting base (optional).

Specifications and Parameters

LVS - 9585: Readable Codes

• Barcodes (1D codes)

• Postal codes

• Data Matrix

• QR code

• Micro QR code

• Aztec code

• Stacked barcodes: PDF417, MicroPDF, GS1 Databar, etc.

For applicable codes, please refer to the rated specifications/performance section.
