Current position: Home > Product display

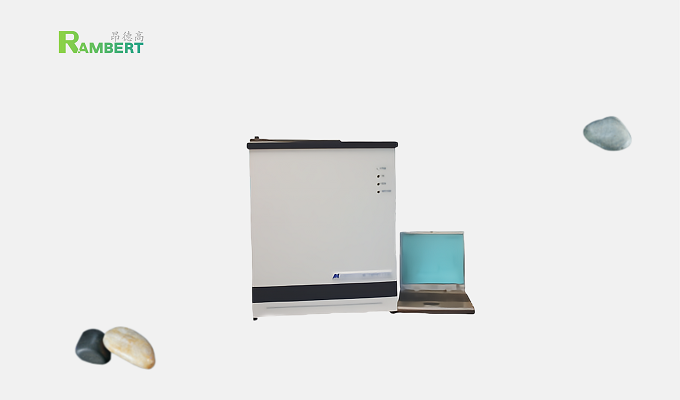

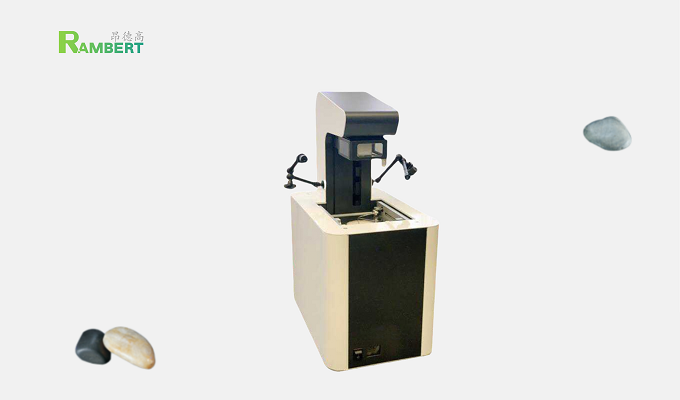

Ion Contamination Tester

The ion contamination tester can simply and accurately measure ion concentration, and it is compatible with major international standards, including MIL-P-28809, MIL-STD-2000A, DEF-STD 10/03, IPC-TR-583, IEC, etc. Through the measurement of ion contamination level, potential problems can be detected immediately, thus ensuring the reliability and durability of your final products.

Product introduction

Features   1. Fully compatible with international standards   2. New-type test tank for precise and simple testing   3. Customizable cleaning tanks available upon request   4. Fully automatic testing   5. User-friendly interface for easy operation   6. Intuitive result display

Specifications and Parameters

ModelCT100CT1000
Cleaning Tank Size80x250x300mm70x700x700mm
Chemical Solvent50% or 75% IPA/DI water
ResinReplaceable, 1 litre of resin
Measurement Range0.01 to 20.00 μgEq NaCl/cm²
Sensitivity0.0001 μS/cm (0.003 μgEq NaCl/cm²)
Power Supply230VAC, 50Hz
Weight17Kg
DimensionsWxDxH: 510x315x590mm
