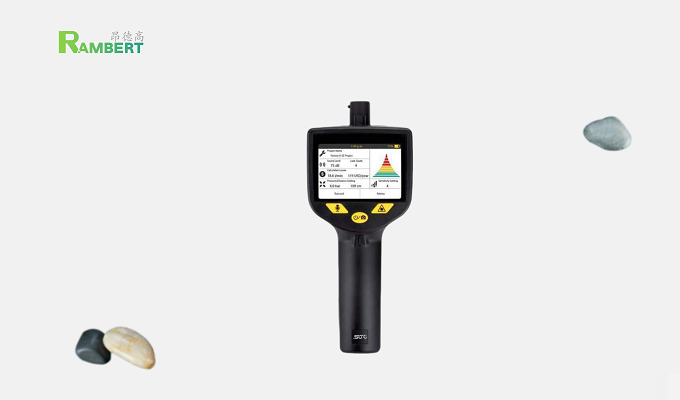

SUTO S531 Intelligent Ultrasonic Leak Detector by Sika
The SUTO S531 intelligent ultrasonic leak detector by Sika provides timely leak detection for compressed air and industrial gas systems, even from a distance. This leak detector features advanced functions and unique advantages.
The SUTO S531 intelligent ultrasonic leak detector by Sika provides timely leak detection for compressed air and industrial gas systems, even from a distance. This leak detector is equipped with advanced functions and unique advantages.
Detecting leaks in compressed air systems with the S531 is the first step in energy saving. Compressed air leaks lead to high electricity costs because compressors need to consume more power to maintain pressure. Early leak detection can save up to 30% of energy costs.
The S531 intelligent ultrasonic leak detector is suitable for compressed air and any gas systems, assisting users in quickly locating and recording leaks. The built-in touchscreen makes leak detection easier and more convenient. The integrated camera and microphone can take photos and record voice memos for each leak point, facilitating subsequent maintenance and tracking.
The S531 can work in conjunction with SUTO's Leak Management Software (LMS), enabling companies to properly manage gas leak detection and follow-up maintenance activities. Each purchase of the S531 ultrasonic leak detector comes with a complimentary LMS license.
If you have any questions or need further information, please contact us.
Measurement | |
---|---|
Optional Units | l/min, m³/h, cfm, bar, MPa, psi |
Sensor | Ultrasonic leak detection sensor |
Laser | Wavelength: 640–660 nm, Output Power: < 1.0 mW |
Camera | 5.0 megapixels |
Interfaces and Supply | |
---|---|
Power Supply | Built-in lithium-ion battery |
Operating Time | 6 hours |
Data Interface | |
Connection | USB port for charging and data exchange |
Headphones | |
Headphones | Noise-canceling headphones |
Headphone Connection | Wireless and 3.5 mm stereo headphone jack |
General Data | |
---|---|
Display | |
Touchscreen | 3.5-inch color LCD touchscreen |
Data Recorder | |
Storage | Integrated large-capacity storage, up to 500 recordings and images |
