Product Introduction

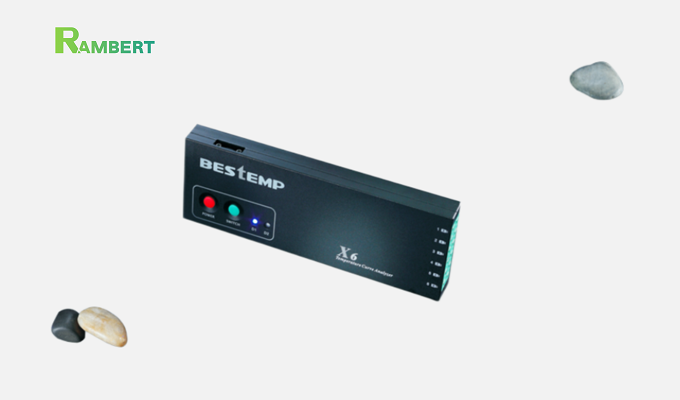

Features of Bestemp X6 Temperature Tester:

• High efficiency: Continuously stores data 16 times and downloads them to a computer for grouped analysis and processing simultaneously;

• Adopts a modular analysis mode. The simple and fast analysis system supports data analysis based on PC (Windows) and PDA (Pocket);

• Low power consumption: Powered by a lithium battery, it can be used continuously for about 100 hours, and can be used after a quick charge of 10 minutes;

• Communication modes include serial port, USB, and wireless transmission, suitable for various working environments and application fields;

• Multi-layer thermal insulation protection, made of stainless steel, can cope with the harshest lead-free processes and withstand harsh industrial environments;

• Manufactured with rigorous technology and provided with accurate calibration services. All calibrations are performed using FLUKE - 724, in partnership with China's largest CTI calibration institution, to ensure the accuracy and reliability of each machine;

• Small size and large storage capacity (5,000,000 data points), using FLASH memory chips, so no data will be lost in case of any accidents.

Advantages of Bestemp X6 Temperature Tester

• Simple and convenient operation. All data are managed by a database, and a wizard can be used to quickly import process analysis;

• The software supports multiple language versions, including Simplified Chinese, Traditional Chinese, English, Korean, Japanese, etc.;

• High-temperature protection: The testing function will automatically turn off when the internal temperature of the instrument exceeds 70°C, and the power will automatically turn off when it exceeds 80°C;

• Sampling frequency can be set (0.05 seconds to 30 minutes);

• Measurement accuracy of ±0.5°C (-70°C to 1370°C), with acquisition modes including button start, temperature trigger start, or time start;

• Intelligent control with indicator lights for all conditions (low battery, charging status, data download, data clear, memory full, high-temperature warning, instrument reset, etc.).

Software Analysis of Bestemp X6 Temperature Tester

• The BESTEMP temperature testing analysis software covers a wide range of temperature testing in the electronic assembly process. It is an efficient, convenient, fast, and easy-to-use analysis software. Its modular structure allows customers to choose freely according to their needs. The software analysis functions are as follows:

• Record the temperature at each point and display it through curves;

• The slope and time changes between any two points;

• The slope and time changes above or below any specific temperature point;

• Accurately display the maximum, minimum, and average temperature, as well as the standard deviation;

• Set alarms for each part and support detailed wave soldering analysis processes.

Product Parameters
