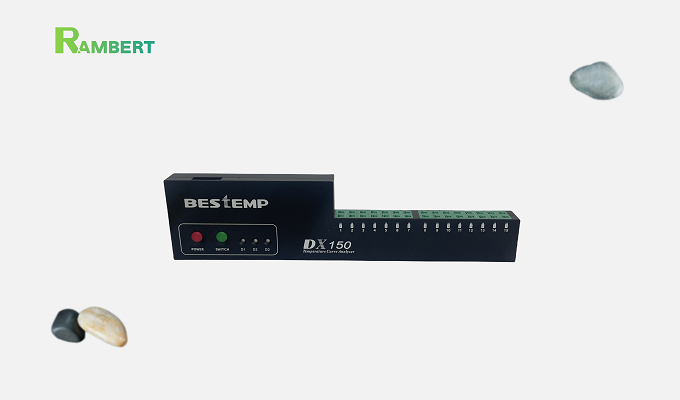

Bestemp dx150 Furnace Temperature Tester

Bestemp dx150 Furnace Temperature Tester

【1】Fifteen-channel instrument
【2】Honorary customers:


  • OEM: Jabil, Flex, BYD, Foxconn, Inspur, etc.

  • Home appliances: Haier, Skyworth, Konka, Midea, DJI, etc.

  • Semiconductors: Shanghai Micro Electronics, CR Semiconductor, Zhenhua New Materials, etc.

  • LED: Unilumin, Han's Laser, Lehman, Hongli Zhihui, etc.


【3】Functions:
① Can test reflow soldering and wave soldering.
② Can continuously store 16 groups of data.
③ Has a simulation function to quickly find suitable furnace temperatures.
④ Can calculate SPC.


Product introduction

Product Introduction

Characteristics of Bestemp dx150 Furnace Temperature Tester
  • High efficiency: Continuously stores data 16 times and downloads it to a computer for grouped analysis.

  • Adopts a modular analysis mode: A simple and fast analysis system supports data analysis based on PC (Windows) and PDA (Pocket).

  • Low power consumption: Powered by a lithium battery, it can be used continuously for about 100 hours, and can be used after a quick charge of 10 minutes.

  • Communication modes: Serial port, USB, and wireless transmission, suitable for various working environments and application fields.

  • Multi-layer thermal insulation protection: Made of stainless steel, it can handle the harshest lead-free processes and withstand harsh industrial environments.

  • Rigorous manufacturing process and accurate calibration services: All calibrations use FLUKE-724 calibration, in partnership with China's largest CTI calibration institution, to ensure the accuracy and reliability of each machine.

  • Small size and large storage capacity (5,000,000 data points): Uses FLASH storage chips to prevent data loss in case of any accidents.

Advantages of Bestemp dx150 Furnace Temperature Tester
  • Simple and convenient operation: All data is managed by a database, and a wizard can be used to quickly import process analysis.

  • Software operation supports multiple language versions: Simplified Chinese, Traditional Chinese, English, Korean, Japanese, etc.

  • High-temperature protection: Automatically turns off the testing function when the internal temperature exceeds 70°C, and turns off the power when it exceeds 80°C.

  • Sampling frequency setting (0.05 seconds to 30 minutes).

  • Measurement accuracy: ±0.5°C (-70°C to 1370°C). Acquisition methods can be selected as button start, temperature trigger start, or time start.

  • Intelligent control: Indicator lights for various conditions (low battery, charging status, data download, data clearing, memory full, high-temperature warning, instrument reset, etc.).

Software Analysis of Bestemp dx150 Furnace Temperature Tester
  • The BESTEMP furnace temperature testing and analysis software covers a wide range of temperature testing in electronic assembly processes. It is an efficient, convenient, fast, and easy-to-use analysis software. Its modular structure allows customers to choose freely according to their needs. The software analysis functions are as follows:

  • Record the temperature at each point and display it through curves.

  • Slope and time changes between any two points.

  • Slope and time changes above or below any point temperature.

  • Accurately display the maximum, minimum, and average temperature, as well as the standard deviation.

  • Can set alarms for each part and provide a detailed wave soldering analysis process.

Product Parameters

Instrument size2736213mm
Insulation box size3129230mm
Memory5,000,000 points
Test Channel15 channels
Sampling frequency0.05s~50 Min
Precision±0.5℃
Resolution0.1℃
Run VoltageDC3.7V~DC4.2V
Battery2500mAh
Thermocouple TypesK type
Power10mAh
Max. inner run temperature70℃
