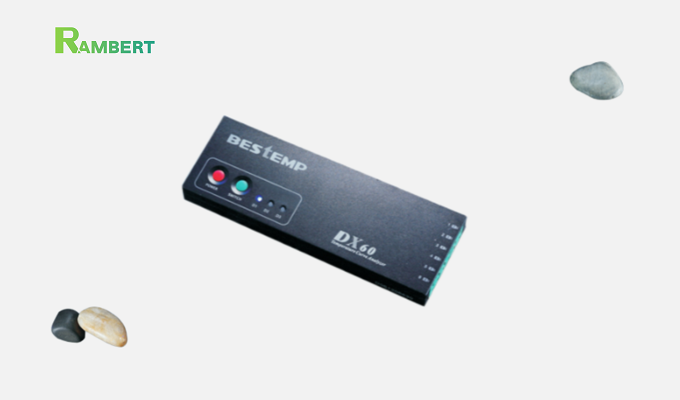

Features of Bestemp DX60 Temperature Tester:
● High efficiency: Continuously stores data 16 times and downloads them to a computer for grouped analysis and processing simultaneously;
● Adopts a modular analysis mode. The simple and fast analysis system supports data analysis based on PC (Windows) and PDA (Pocket);
● Low power consumption: Powered by a lithium battery, it can be used continuously for about 100 hours, and can be used after a quick charge of 10 minutes;
● Communication modes include serial port, USB, and wireless transmission, suitable for various working environments and application fields;
● Multi-layer thermal insulation protection, made of stainless steel, can cope with the harshest lead-free processes and withstand harsh industrial environments;
● Manufactured with rigorous technology and provided with accurate calibration services. All calibrations are performed using FLUKE-724, in partnership with China's largest CTI calibration institution, to ensure the accuracy and reliability of each machine;
● Small size and large storage capacity (5,000,000 data points), using FLASH memory chips, so no data will be lost in case of any accidents.

Advantages of Bestemp DX60 Temperature Tester

● Simple and convenient operation. All data are managed by a database, and a wizard can be used to quickly import process analysis;
● The software supports multiple language versions, including Simplified Chinese, Traditional Chinese, English, Korean, Japanese, etc.;
● High-temperature protection: The testing function will automatically turn off when the internal temperature of the instrument exceeds 70°C, and the power will automatically turn off when it exceeds 80°C;
● Sampling frequency can be set (0.05 seconds to 30 minutes);
● Measurement accuracy of ±0.5°C (-70°C to 1370°C), with acquisition modes including button start, temperature trigger start, or time start;
● Intelligent control with indicator lights for all conditions (low battery, charging status, data download, data clear, memory full, high-temperature warning, instrument reset, etc.).

Software Analysis of Bestemp DX60 Temperature Tester

● The BESTEMP temperature testing analysis software covers a wide range of temperature testing in the electronic assembly process. It is an efficient, convenient, fast, and easy-to-use analysis software. Its modular structure allows customers to choose freely according to their needs. The software analysis functions are as follows:
● Record the temperature at each point and display it through curves;
● The slope and time changes between any two points;
● The slope and time changes above or below any specific temperature point;
● Accurately display the maximum, minimum, and average temperature, as well as the standard deviation;
● Set alarms for each part and support detailed wave soldering analysis processes.

Product Parameters
