PCBA Cleaning Machine

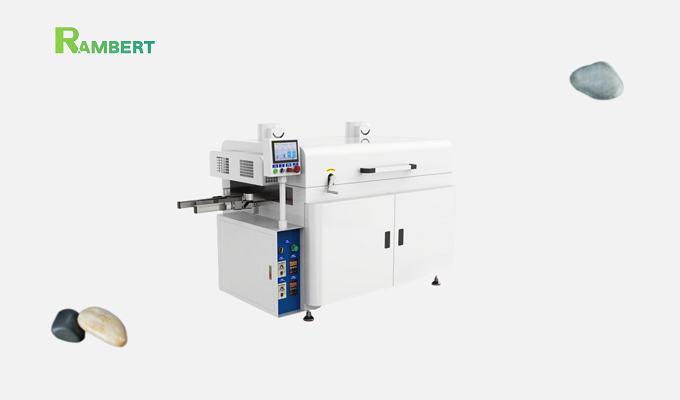

The PCBA cleaning machine, also known as PCBA single-sided cleaning machine, PCBA surface cleaning machine, PCBA online brushing machine, and fully automatic single-sided PCBA board brushing machine, is an online fully automatic cleaning machine dedicated to PCBA boards. It is suitable for traditional cleaning agents, eliminating the need for manual contact with cleaning agents. The equipment combines PCBA board transmission technology with brush cleaning technology, featuring multi-directional brushing from front, back, left, and right to ensure 死角 - free (no dead-angle) cleaning and meet the cleanliness requirements for PCBA boards. It is suitable for cleaning the welding surface of single-sided PCBA boards without wetting front-side components.

Product introduction

Equipment Features:


  • 1、Unique machine body structure with stable performance and industry-leading cleaning effect.

  • 2、Specialized for removing tin beads, flux traces, and grip marks.

  • 3、Imported brown brush and anti-static brush, preventing static electricity and damage to PCBA boards.

  • 4、Suitable for PCB boards with board edges (minimum board edge distance of 1.5mm), with an adaptable width range for PCBA boards.

  • 5、Thickened spring clips ensure no displacement of PCBA boards during transportation.

  • 6、Automatic cleaning agent coating system: Uniformly coats the welding surface of PCBA boards with cleaning agent without affecting other component surfaces.

  • 7、Disc brush + two-stage drum: Ensures all-directional cleaning of PCBA boards with no dead angles.

  • 8、Adjustable cleaning brush height and rotation speed (stepless speed regulation) to adapt to different cleaning needs.

  • 9、Waste generated during operation is automatically collected in the filter box at the bottom of the machine for easy disposal.

  • 10、Driven by high-quality electronic speed-regulating motors with stepless speed adjustment for durability.

  • 11、Powered by 220V for convenient use.

  • 12、Uses branded electrical components and control systems to ensure reliability and stability of the control system.

  • 13、Adopts modular control.


Structure and Functions:


  • 1、Equipment structure: Comprises loading  (conveyor mechanism), transportation mechanism, brush cleaning system, circulating filtration system, air drying system, PLC program controller, and other automated control systems. All systems are designed as independent modules for simple operation and easy maintenance.

  • 2、The entire machine is automatically controlled by PLC, featuring comprehensive functions with both fully automatic and manual operation modes. The automatic mode (economic operation mode) significantly reduces consumption of cleaning agents and electricity.

  • 3、Disc brushes and drum brushes simultaneously clean the bottom of PCBA boards from all directions (front, back, left, right) for 死角 - free (no dead-angle) cleaning.

  • 4、The cleaning module is equipped with a fully enclosed three-stage automatic circulating filtration system to continuously filter out stains from the cleaning solution, keeping it in a high-activity state for recycling.

  • 5、The cleaning solution tank is equipped with low-level and over-limit level alarms.

  • 6、Air drying device: Uses fans to rapidly dry the surface of PCBA boards after cleaning.

  • 7、The motors of the wet cleaning module and dry cleaning module are independent, allowing separate adjustment of speed and height to suit various PCBA board cleaning processes.

  • 8、First-stage brush wet cleaning module: Includes two sets of abrasive brushes and two sets of spray pipes, rotating in reverse to brush PCB boards, with cleaning solution returning to the circulation system.

  • 9、Second-stage dry cleaning module: Includes one set of disc brown brushes, rotating in reverse to clean PCBA boards.

  • 10、Third-stage wet cleaning module: Includes one set of drum abrasive brushes and one set of spray pipes, rotating in reverse to brush PCBA boards, with cleaning solution returning to the circulation system.

  • 11、Fourth-stage dry cleaning module: Includes one set of disc brown brushes, rotating in forward direction to clean PCBA boards.
