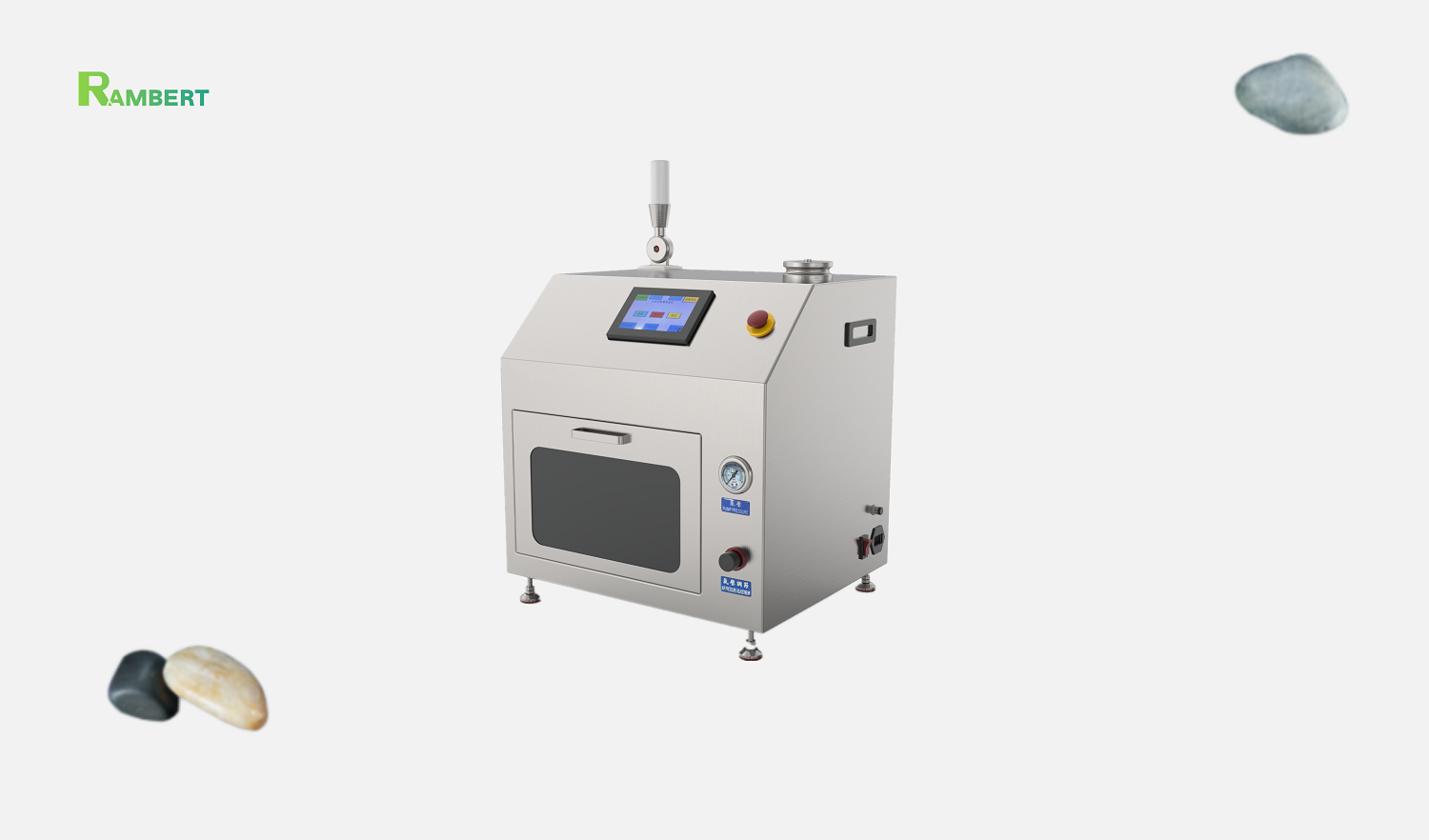

With the development of SMT technology, the miniaturization of electronic components and the downsizing of high-density surface-mounted integrated circuits have become a reality. The future development trend will inevitably be the continuous miniaturization of electronic components. When mounting chips, the suction nozzles of the chip mounter may cause frequent material throwing and breakdown shutdowns due to contamination with solder, dust blockage, etc., which has a great impact on production, leading to a decline in production efficiency. Scientifically cleaning the precise and tiny suction nozzles has become an urgent problem to be solved.
1. The appearance adopts a streamlined design, which is beautiful and generous.
2. Three nozzles are used to clean 30 suction nozzles in 10 rows in sequence, achieving high efficiency and energy conservation.
3. There is an inspection window throughout the process, which is convenient for maintenance and operation.
4. All parts in contact with water are made of 304 stainless steel, which is rust - proof, corrosion - resistant, and firm and stable.
5. With a human - oriented design, one - key start can be realized through external buttons.
6. It adopts a touch - screen + PLC distributed control, with stable and reliable performance.
7. It is easy to operate, has a friendly interface and can switch between Chinese and English at any time.
8. It has a misoperation alarm and emergency braking system, and is equipped with an overload protection system.
9. Environment - friendly and pollution - free industrial pure water (soft water with a pH value of 5 - 7) or tap water is used.
10. Centralized collection of waste is convenient for maintenance.
11. The water level sensing function is added.
| Dimension (L×W×H) | 598×396×365 MM |
|---|---|
| Power Supply (2-phase 2-wire) | 2P2W, 220VAC, 50/60Hz, 20A |
| Power Requirement | 250W |
| Air Pressure | 0.5 - 0.6MPa (during normal operation) |
| Weight | Approximately 40KG |
| Electrical Control Parameters | |
|---|---|
| Total Power | 200W |
| Control Mode | Touchscreen + PLC |
| Air Source | Clean compressed air |
| Spray Pressure | 0.4 MPa |
| Air Consumption | Below 280NL/min |
| Liquid Type | Industrial pure water |
| Liquid Consumption | 300cc/hour |
| Liquid Storage | 800cc |
| Air Inlet/Drain Pipe | ￠8 / ￠6 |
| Nozzle Tray Specification | Default: 3 nozzles per row, 10 rows, 30 nozzles |
| Cleanable Nozzle Specifications | 0402, 0201, 01005, 03015 |
| Noise | 35-60 dB |
