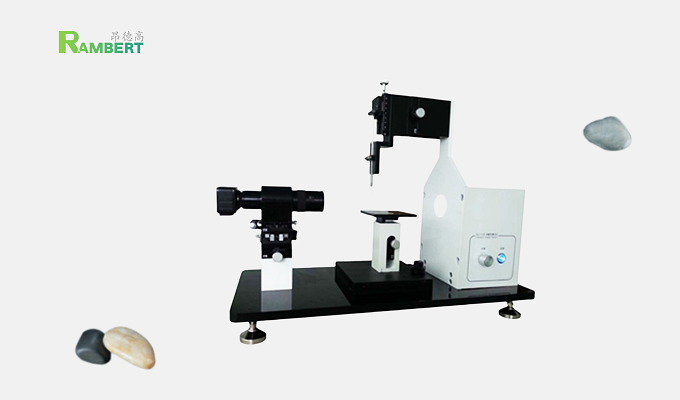

Water Drop Angle Tester

The water drop angle tester is an affordable entry-level static contact angle analyzer. Based on the principle of optical image analysis, it tests the contact angle of liquids on solid surfaces, the surface tension of liquids, and the estimation of solid surface energy and its components.


It is widely used in the analysis of surface treatment effects and cleanliness detection in industries such as spraying, coating, glass, aluminum foil, electronic components, and cleaning.


Online consulting QQ online consultation phone：0755-29356509
Product introduction
Applications

Widely used in the analysis of surface treatment effects and cleanliness detection in industries such as spraying, coating, glass, aluminum foil, electronic components, and cleaning.

Features

  1. Uniquely designed precision mechanical structure for multi-dimensional coordinated control of the sample stage, sample loading system, and imaging system.

  2. The main frame is made of lightweight and high-strength aluminum alloy through CNC machining after professional design, with a plastic-sprayed surface.

  3. The sample loading device uses a gear-rack and threaded lead screw to drive the syringe for liquid loading, with multiple specifications of liquid syringes available as options.

  4. A patented sample lifting and translation combination platform that enables large-range movement without any shaking or tilting.

  5. A camera and continuously zoomable lens, combined with a precision focusing positioning stage, enabling long-distance clear focusing.

  6. Cold light source technology to ensure clear droplet contours.

  7. Real-time video monitoring of the test area, capable of instant freezing and continuous capture of sample image information, with adjustable capture cycles.

  8. The software provides various professional measurement and calculation methods, suitable for the analysis of multiple types of solid surfaces and droplet shapes.

  9. The software can calculate contact angle values in multiple ways, and the left and right contact angles can be calculated and compared separately to achieve more accurate test results.

  10. The software supports saving and importing images for re-analysis, as well as printing test data.

Specifications and Parameters

Contact AngleMeasurement MethodStatic Drop Method

Calculation MethodsGoniometry, Height Measurement, Base Point Method

Measurement ResultsLeft Contact Angle, Right Contact Angle

Measurement Range0°～180°

Measurement Error±0.1° (θ/2 Method)

Measurement Resolution0.01°


Liquid Surface TensionMeasurement MethodPendant Drop Method

Measurement ResultsSurface Tension

Measurement Range0.01～500 mN/m

Measurement Accuracy±0.1% (relative to the measured value)

Measurement Resolution0.01 mN/m


Solid Surface EnergyEstimation MethodOWRK Two-Liquid Method

Estimation ResultsSolid Surface Free Energy and Its Dispersive Force, Polar Force


Shooting ModesSingle ShootingAutomatically saves the frozen image as a JPG picture

Continuous Shooting1 frame/s, 2 frames/s, 10 frames/s (optional)


Optical Imaging SystemCamera1/2″ CMOS sensor, resolution 1024×768, frame rate 10fps

Lens0.7～4.5× continuous zoom, manual focusing, focusing range ±20mm

BacklightLED cold light source, continuously adjustable brightness


Sample Loading SystemSample Loading MethodManual knob type

Displacement Accuracy1mm


Sample StagePlatform SizeL100×W100mm

Left-Right MovementManual, stroke ±43mm

Front-Back MovementManual, stroke ±50mm
