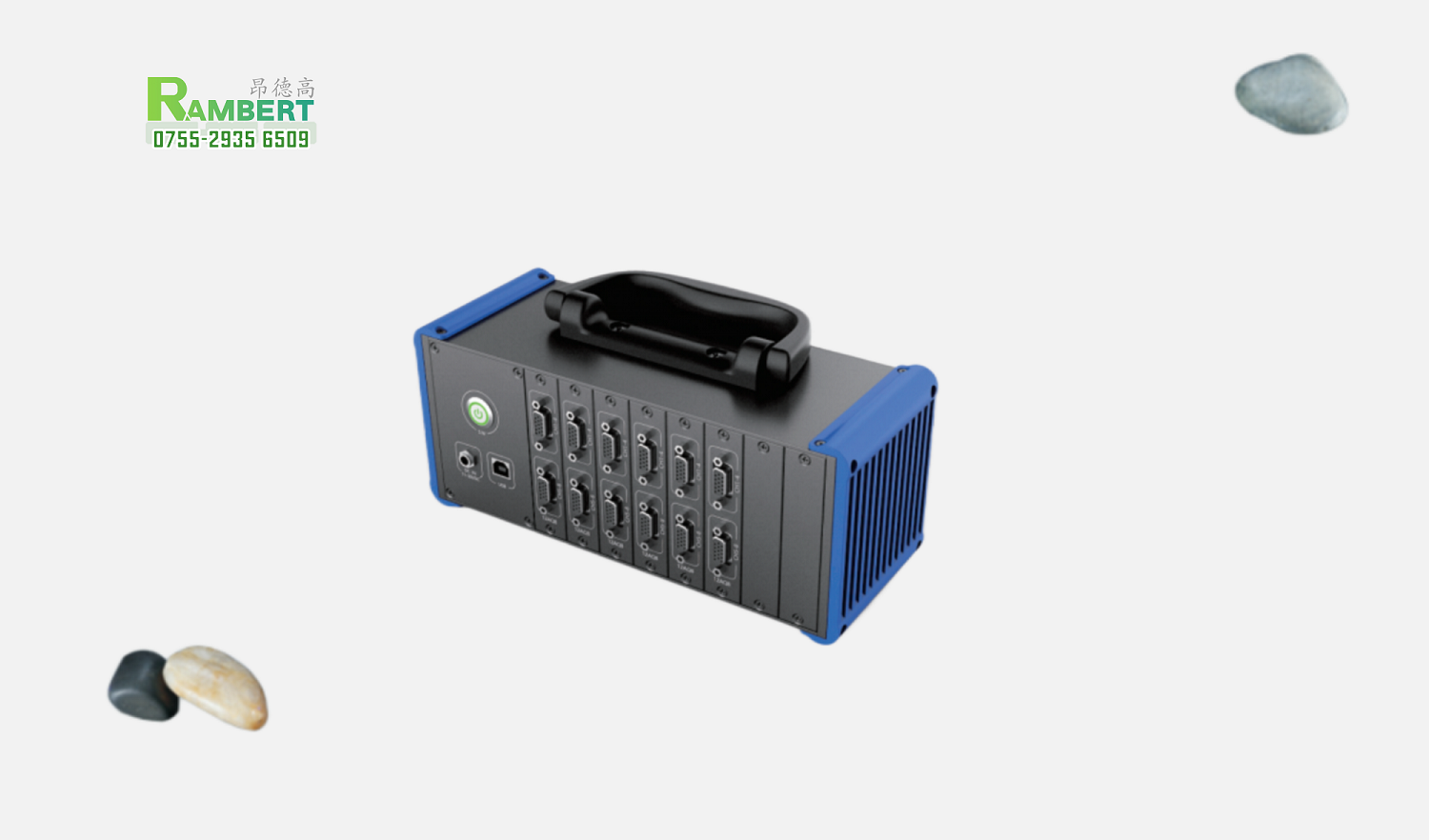

High-precision stress tester, covering the whole-process solutions such as circuit board ICT stress test, FCT functional stress test, assembly stress analysis, drop impact test, and board dicing stress detection. It adopts a modular design, supports multi-channel synchronous acquisition, has a sampling rate of up to 10KHz, complies with international standards such as Intel and IPC-9704, and can generate professional reports with one click to help you accurately control product quality!
【Product Introduction】
We provide high-precision stress testers, covering the whole-process solutions such as circuit board ICT stress test, FCT functional stress test, assembly stress analysis, drop impact test, and board dicing stress detection. It adopts a modular design, supports multi-channel synchronous acquisition, has a sampling rate of up to 10KHz, complies with international standards such as Intel and IPC-9704, and can generate professional reports with one click to help you accurately control product quality!
【Core Advantages】
✔ Multi-scenario coverage: From PCBA to the whole machine, from static to dynamic impact, it can meet the test needs of ICT, FCT, assembly, drop, board dicing, etc. in one stop
✔ Military-grade accuracy: 24-bit ADC, ±55500με range, 0.3% accuracy, 6ppm/℃ ultra-low drift, and the data is as reliable as a "steel (straight man)".
✔ Intelligent and efficient: Chinese operation interface, 64-channel expansion, 10KHz high-speed sampling, USB real-time storage, liberating engineers' hands
✔ International certification: Strictly follow industry standards, automatically judge Pass/Fail, and the report is authoritative and credible
【Typical Applications】
► Electronic manufacturing: PCB board dicing stress, SMT pasting process verification
► Automotive electronics: ECU module assembly stress analysis
► Consumer electronics: Mobile phone/laptop drop test simulation
► Aerospace: Key component ultimate load test
| Single Channel Value: | |
|---|---|
| Maximum number of modules that can be accommodated | 8 modules |
| --- | --- |
| Sampling frequency | Up to 10KHz/channel |
| AD converter resolution | 24 bits |
| Filter | Delta-Sigma (with analog pre-filter) |
| Input connector | D-Sub 25-pin or card terminal |
| Synchronous operation | Up to 8 groups, 64 channels |
| Sampling mode | Synchronous acquisition, all channels are synchronized |
| Wheatstone bridge type | 1/4 bridge (two-wire and three-wire) |
| Accuracy error | 0.3% |
| Strain-type sensor resistance supported | 120 ohms or 350 ohms |
| Range | ±55500ue |
| Non-linearity | ±0.1%FS or within |
| Scale factor | 3.5062nV/V/LSB |
| Stability | Gain drift 6ppm/℃ |
| Overvoltage protection between any two terminals | ±30V |
| Chassis interface | USB2.0 |
| Power supply | 11-30VDC, 220VAC |
| Working environment | -40℃~70℃, 10%～90%RH, no condensation |
| Storage environment | -40℃~85℃, 5%~90%RH, no condensation |
| Protection level | Ip40 |
| Weight | About 2.5KG |
